Good gauge for measuring case neck

jdyoung

Well-Known Member
LRH Team Member
Joined
Mar 1, 2020
Messages
346
Location
Ironman Country
I'm looking at purchasing a good gauge, not the most expensive one, but something accurate enough to measure the case neck thickness to aid in obtaining concentric cartridges. I'm also needing to purchase a case neck trimmer. Any ideas?

Thanks,
1980Harley
You're wanting to measure case neck wall thickness , or case concentricity, or both ?


Mikecr

Well-Known Member
Joined
Aug 10, 2003
Messages
5,337
Location
NC, oceanfront
A really good basic neck mic is Sinclair's Starret: https://www.sinclairintl.com/reload...r-starret-case-neck-micrometer-prod38096.aspx
It's very easy to use & accurate enough for this application.
You can & should add a form of neck stop to datum for your measure as necks taper in thickness from shoulders to mouths. Bushings work well with this. The ball anvil is also adjustable in height so that you can set the ball contact against near-edge of spindle to really get in tight to neck-shoulder junction if desired.



Paper boy

Well-Known Member
Joined
Jul 18, 2019
Messages
211
Location
Tennessee
I'm looking at purchasing a good gauge, not the most expensive one, but something accurate enough to measure the case neck thickness to aid in obtaining concentric cartridges. I'm also needing to purchase a case neck trimmer. Any ideas?

Thanks,
1980Harley
Buddy, I have had them all! You can't beat the Sinclair shown in th photo. No batteries, no plastic, lasts for ever and accurate as all getout!


Attachments

elf

Well-Known Member
Joined
Nov 26, 2017
Messages
271
I have the following tools that my be of interest to you:
Basic L. E. Wilson Case Trimmer and Sinclair stand. $70.00 shipped to lower 48. For $20.00 more I will include the Wilson Power Adapter.
View attachment 214716

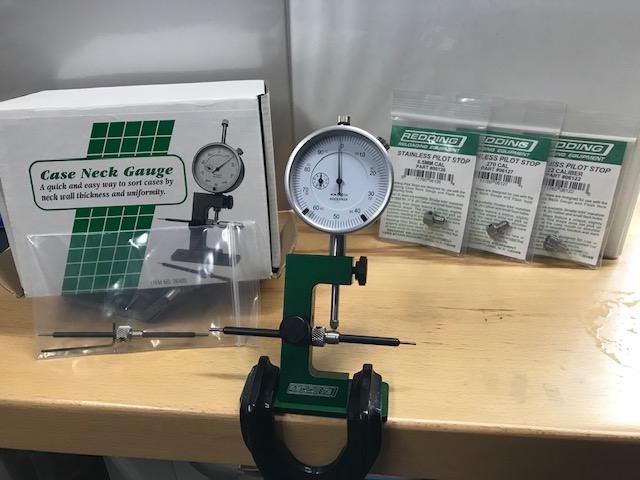

Redding Case Neck Gauge with bench grip and four pilots: .22, 6.5mm, .270, and .30. As pictured. $100.00 shipped to lower 48.
View attachment 214717
Thumbs up on the Wilson trimmer. And I measure neck thickness with a mitutoyo ball mic.


Mikecr

Well-Known Member
Joined
Aug 10, 2003
Messages
5,337
Location
NC, oceanfront
If it doesn't have a ball point contact inside the neck(but a tubing mic post instead), it's not accurate for necks.
This, because of built-in thickness taper and less than straightness that necks present.

Difference:


1980Harley

Member
Joined
May 14, 2016
Messages
16
Got it. I also see that you measure very close to the middle of the neck and not near the front edge.


misterc01

Well-Known Member
Joined
Feb 15, 2019
Messages
438
Location
Florida Panhandle
Not sure if this has been mentioned earlier, but I measure at four points, 90 degrees apart, to get an overall thickness of the case neck and not at just one point.

Last edited:

EndersPrint

Member
Joined
Sep 8, 2020
Messages
15
Location
Reno, NV
I just picked up a Mitutoyo 115-313 at a reasonable price on eBay to start my neck turning adventures. So far so good.
