I need help with pressure problems


LinkBack Thread Tools Display Modes
  #8
Old 05-05-2012, 12:44 AM
Silver Member

Join Date: Nov 2008
Location: New Zealand
Posts: 102
Re: I need help with pressure problems

Lube left on the case or some solvents in the chamber can cause this.

Is it posssible to post a pic of the case head showing the extracor swipe?
Reply With Quote
  #9
Old 05-06-2012, 02:25 AM
Silver Member

Join Date: Feb 2009
Posts: 241
Re: I need help with pressure problems

Quote:
Originally Posted by yawn View Post
Lube left on the case or some solvents in the chamber can cause this.

Is it posssible to post a pic of the case head showing the extracor swipe?
Ok I have taken a few measurements (with pictures...I know how you guys like pictures)

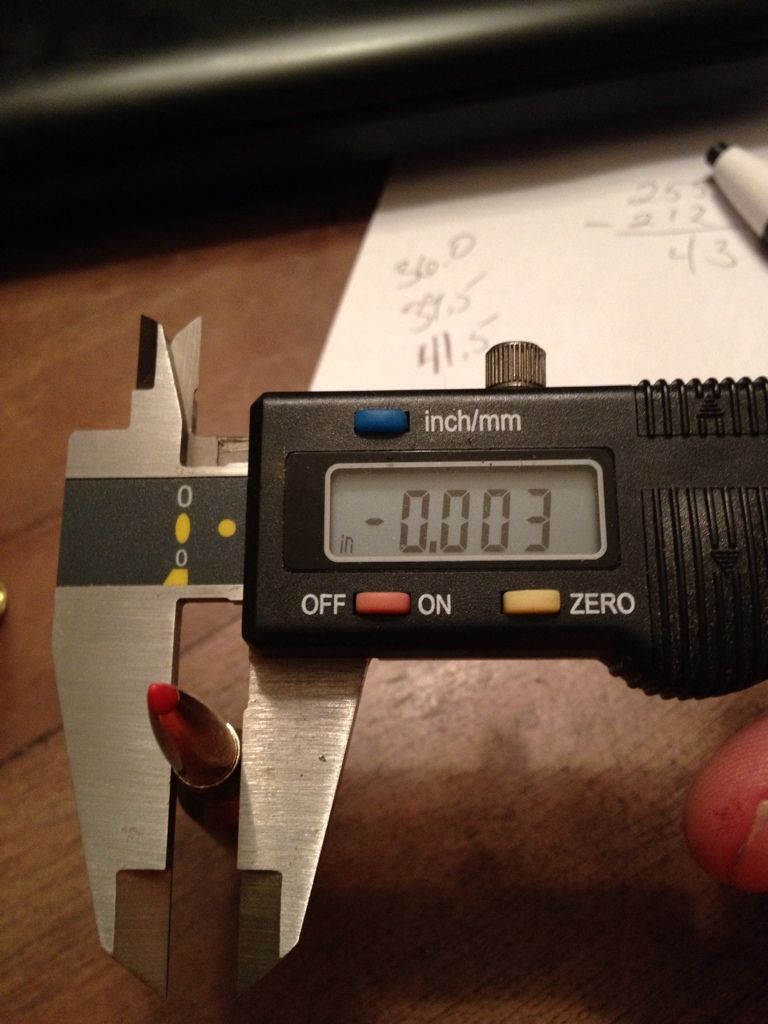

The first is for the neck measurements. I read 5 fired cases and they all read the same so I zeroed on one of them and here is what I got:

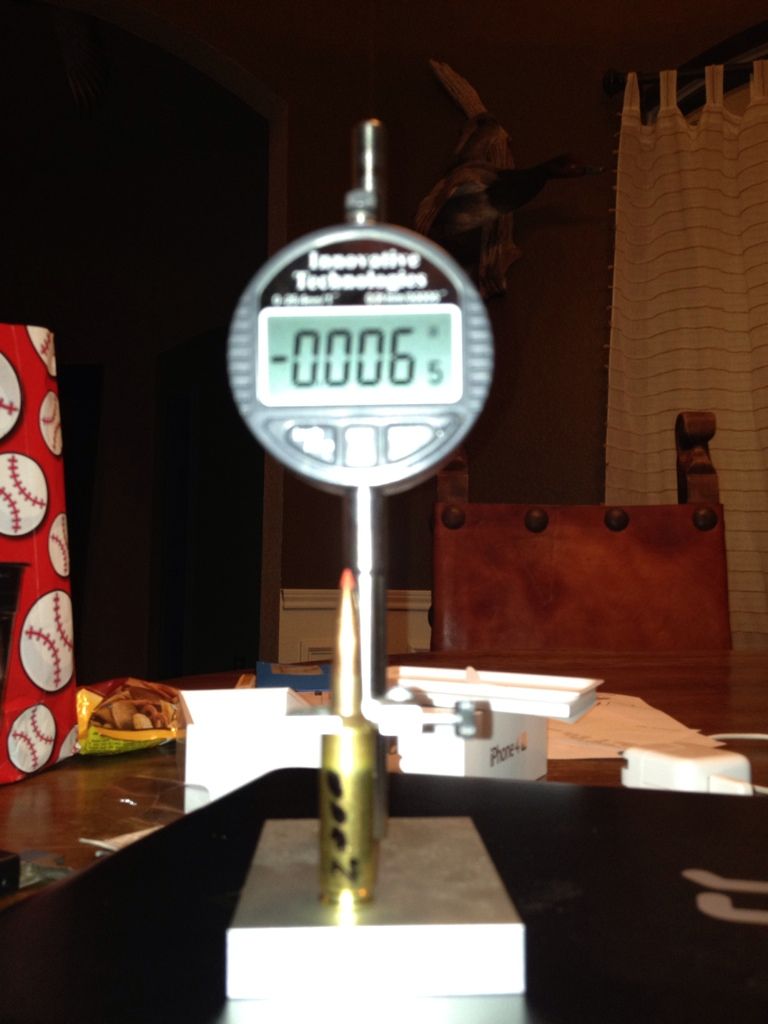

Next I have an innovative technologies bad ass headspace guage. Looks like I have exactly .006 clearance between new brass before it is fired.

And finially I have pictures of the case heads. It is not easy to get the swipe to photograph y but you can see the circle.
First(right to left) 36g 2000MR....2577fps
39.5g 2000mr......2760
41.5g 2000MR......2942

I do realize that solvent and or lube can cause problems but this is not what's going on here. Also the rifle has been cleaned by the letter of the law...no copper build up or other cleaning related issues.

Notice in the pictures the primers do not really show any issues...but with circles and heavy bolt(but like I mentioned slightly heavy on the close) it has me confused...
__________________
"Killen is my business and business is GOOD!!!"
Major Benson Winerford Payne
Reply With Quote
  #10
Old 05-06-2012, 02:59 AM
Silver Member

Join Date: Feb 2008
Posts: 458
Re: I need help with pressure problems

It's quite possible that you have a soft batch of brass, it does happen, even with high end manufacturers.

Looking at your case pics, they all look similar, which is why I suggested you may have a soft lot of brass, if it was only at the high end then I would think it was the load only.

I have a question: How far from/into the lands are you loading?

Loading into the lands can also raise pressures dangerously from starting loads.


Reply With Quote
  #11
Old 05-06-2012, 08:59 AM
Silver Member

Join Date: Feb 2009
Posts: 241
Re: I need help with pressure problems

I agree that in the photos the ejector mark looks the same, but with the naked eye, the warmer loads are more evident. You have to look for the mark on the lighter loads.

I'm not sure that the brass is soft though because I ran them all over a manderal(sp) die and still had to lube the bullets a little to get them to seat without cutting a ring where the stem made contact. I'm using a Wilson seater. Maybe the brass is to hard?

I'm jumping .005
__________________
"Killen is my business and business is GOOD!!!"
Major Benson Winerford Payne
Reply With Quote
  #12
Old 05-07-2012, 04:57 PM
Silver Member

Join Date: Nov 2008
Location: New Zealand
Posts: 102
Re: I need help with pressure problems

Quickload suggests your 36gr H4350 load would be ruining about 43500 psi.,your brass seems to think otherwise though. I think Id try some different brass first maybe some one could donate a few pieces that are proven?, It may be a slow barrel but thats getting a bit ridiculous.
Reply With Quote
  #13
Old 05-07-2012, 07:18 PM
Platinum Member

Join Date: Aug 2003
Location: NC, oceanfront
Posts: 3,234
Re: I need help with pressure problems

I doubt it's a brass problem, if an issue at all(might not be).
There are still basic measurements to make that can't be generalized or assumed.
Reply With Quote
  #14
Old 05-08-2012, 06:39 PM
Silver Member

Join Date: Feb 2009
Posts: 241
Re: I need help with pressure problems

Mike, I thought I made the measurements you suggested but missed the one for the webb. Maybe you could explain this and anything else i need to measure. thanks
__________________
"Killen is my business and business is GOOD!!!"
Major Benson Winerford Payne
Reply With Quote
