7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner


LinkBack Thread Tools Display Modes
  #3011
Old 03-17-2013, 12:53 AM
Bronze Member

Join Date: Jan 2013
Posts: 66
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

For some reason the email on my phone is jacked up and it wont send all the pictures the way I need them to. Anyway here's a shot of the rifle in it's original configuration. It's a 1974 Winchester Mod 70 Ranger in 270 Win. It's an ADL style which ultimately worked out better for this application with fitting the action for the longer Wyatts box and the PTG bottom metal.

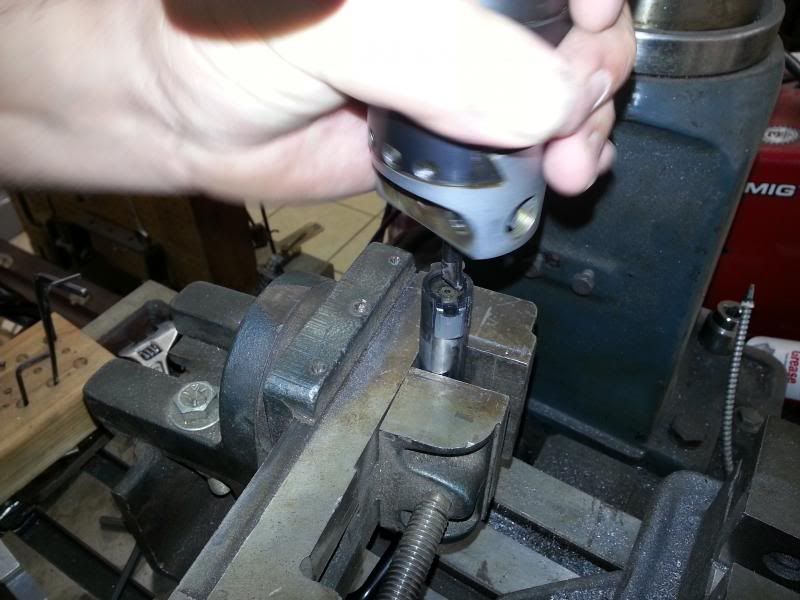

The other picture is a quick shot I grabbed while I was thinking about it when I started the process of opening the bolt face up from a 30-06 bolt face to a magnum bolt face. The offset boring bar on the mill was only the rough cut process, it was finished, faced, and trued with the PTG Magnum bolt face cutter in a jig I built that does the bolt while in locked battery in the action. I have pictures of that too once my phones stops being dumb.

__________________
Ben - Gunsmith
Trails End Gunworks
209 S. Magdalen
San Angelo, TX 76903

Shop Number - 325-212-4392
Reply With Quote
  #3012
Old 03-17-2013, 07:56 AM
Gold Member

Join Date: Feb 2012
Location: West Terre Haute Indiana
Posts: 553
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by USMC91 View Post
I have shot some with H1000, today i shot a pretty good group with 75 gr H1000. I am going to keep workin it and see what happens. I have also been using IMR7828ssc, and i am having good luck with it as well at around 69 grains.
I have had really good results with H-1000 and it is really stable and cosistant with temp changes
__________________
ButterBean
Remember.....Dont argue with stupid people,They will drag you down to their level and then win by experience
Reply With Quote
  #3013
Old 03-17-2013, 08:02 AM
Gold Member

Join Date: Feb 2012
Location: West Terre Haute Indiana
Posts: 553
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by SFR292 View Post
For some reason the email on my phone is jacked up and it wont send all the pictures the way I need them to. Anyway here's a shot of the rifle in it's original configuration. It's a 1974 Winchester Mod 70 Ranger in 270 Win. It's an ADL style which ultimately worked out better for this application with fitting the action for the longer Wyatts box and the PTG bottom metal.
The other picture is a quick shot I grabbed while I was thinking about it when I started the process of opening the bolt face up from a 30-06 bolt face to a magnum bolt face. The offset boring bar on the mill was only the rough cut process, it was finished, faced, and trued with the PTG Magnum bolt face cutter in a jig I built that does the bolt while in locked battery in the action. I have pictures of that too once my phones stops being dumb.

Thats a really nice offset cutter you have .......Me like ......I would Love to see the rig you have for finish cutting
__________________
ButterBean
Remember.....Dont argue with stupid people,They will drag you down to their level and then win by experience
Reply With Quote
  #3014
Old 03-17-2013, 10:16 AM
Gold Member

Join Date: May 2011
Location: Damascus, MD
Posts: 863
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by ButterBean View Post
I have had really good results with H-1000 and it is really stable and cosistant with temp changes
Ditto what Lee said.

I have had good results too with H-1000 and my reloads with mine and my Pop's 7mm STWs.
__________________
Remington 700 Sendero SF 7mm STW
Vortex Viper PST 6-24x50 FFP EBR-1 MOA Reticle Scope

Remington 700 Sendero SF 7mm STW
Vortex Viper PST 6-24x50 FFP EBR-1 MOA Reticle Scope

Remington 700 LSS .257 Weatherby Magnum
Vortex Viper PST 6-24x50 FFP EBR-1 MOA Reticle Scope
Reply With Quote
  #3015
Old 03-17-2013, 10:31 AM
Junior Member

Join Date: Mar 2013
Location: Thermopolis, WY
Posts: 12
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by gamehawker View Post
Ditto what Lee said.

I have had good results too with H-1000 and my reloads with mine and my Pop's 7mm STWs.
So far i have had the best luck with the imr 7828, but i think i am getting close i think!
Reply With Quote
  #3016
Old 03-17-2013, 12:44 PM
Platinum Member

Join Date: Jan 2010
Location: Leominster mass, originally Salisbury Maryland
Posts: 1,324
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by SFR292 View Post
For some reason the email on my phone is jacked up and it wont send all the pictures the way I need them to. Anyway here's a shot of the rifle in it's original configuration. It's a 1974 Winchester Mod 70 Ranger in 270 Win. It's an ADL style which ultimately worked out better for this application with fitting the action for the longer Wyatts box and the PTG bottom metal.
The other picture is a quick shot I grabbed while I was thinking about it when I started the process of opening the bolt face up from a 30-06 bolt face to a magnum bolt face. The offset boring bar on the mill was only the rough cut process, it was finished, faced, and trued with the PTG Magnum bolt face cutter in a jig I built that does the bolt while in locked battery in the action. I have pictures of that too once my phones stops being dumb.

Ben, that gun you are working with right now looks like the rifle I started with when I started building my Custom 280. Mine was a M670, in 30-06. But it don't look like it now, I'll tell you that. I forget which years they made the 670, actually, it is a 670A, which has the three position safety, which is better anyway. Gotta love the Winchester actions! I have gotten to really like them. I like them for the one piece receiver/ recoil lug. That has got to be a advantage when coupling barrel to it!
__________________
AIM SMALL,MISS SMALL. 7 STW
LIFE IS TOO SHORT! AND WE ARE A LONG TIME DEAD!!!
Reply With Quote
  #3017
Old 03-17-2013, 12:54 PM
Platinum Member

Join Date: Jan 2010
Location: Leominster mass, originally Salisbury Maryland
Posts: 1,324
Re: 7mm STW Brotherhood - For those who shoot the 7mm Shooting Times Westerner

Quote:
Originally Posted by SFR292 View Post
Well after many months I finally started building my personal STW at the shop. I have some pictures of the process but unsure if I should start a new post of the build or just post them all here. Thoughts?

Anyway, I got the barreled action broke down, milled the receiver to accept the Wyatts box, fitted the PTG one piece bottom metal, opened the bolt face from 30-06 to Magnum, trued the action, trued the raceways, trued the lugs, trued the bolt face to the action, polished and lapped the raceways, lapped the lugs and fitted the raceways to the mag box to allow for smooth feeding. Now I'm ready to thread the barrel and cut the chamber. I'm having a custom stock (one off, not produced for the Win Mod 70 normally) made up at HS Precision from a buddy I know that works there and it should be in my hands next week and I should be able to get this thing out and shoot it within 2 weeks. Then tear it back down and send it off to get fluted, then I'll DuraCoat it when it gets back from twisted barrels.
Ben, sounds like you have been busy! And it also sounds like you are building a tack driver too!
PS, I like your workshop, nice toys!!
What barrel did you go with?
__________________
AIM SMALL,MISS SMALL. 7 STW
LIFE IS TOO SHORT! AND WE ARE A LONG TIME DEAD!!!
Reply With Quote
